Proizvodi

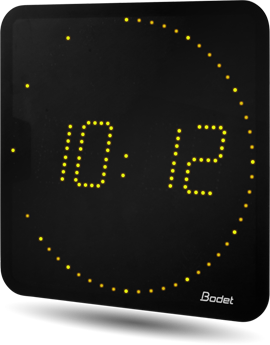

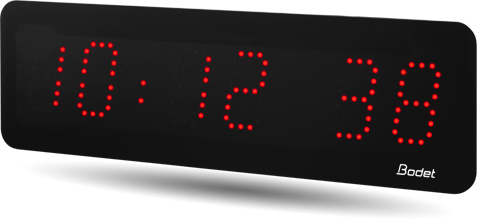

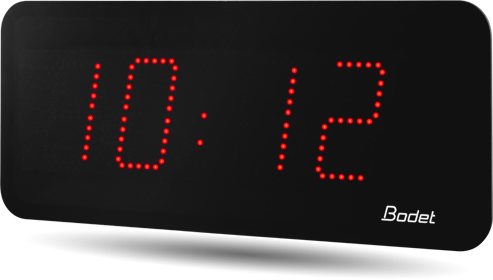

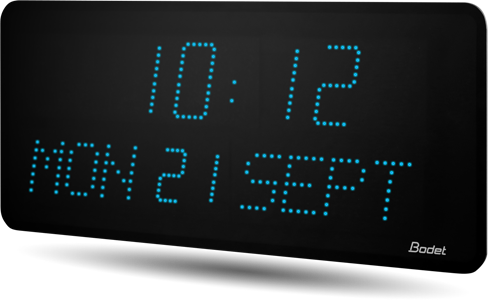

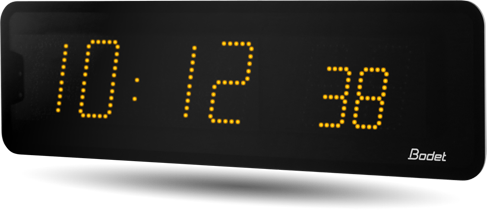

Style LED digitalni satovi, unutarnji

Unutarnji LED satovi veličine brojeva 50,70,100 mm

SKU: Style II 5S Kategorije: , Oznake , , , , ,
Bodet

Opis

• Način prikaza 12 ili 24 sata

• Automatsko ljeto / zima prebacivanje

• Podesiva svjetlina: 4 razine

• Napajanje: 100-240V ili PoE

• Crno brizgano ABS kućište

• Programiranje preko 2 kapacitivna gumba (osim u STYLE 10D i 10SD)

• Programabilno vremensko razdoblje za način uštede energije

• Boje znakova: crvena (1), zelena (2), žuta (3), plava (4), bijela (5)

• Raspodjela vremena: DHF, NTP, AFNOR, impuls

• Modeli za ugradnju u zid: Style 5, Style 5S, Style 7, Style 7D, Style 10

• Vodootporni modeli: Style 7, Style 7D, Style 10

• Dodatni rotacijski prikazi na nekim modelima: datum, broj tjedna i temperatura

• Visina znakova: 50-70-100 mm

Dokumenti

Dokumenti za preuzimanje:

LCD unutarnji satovi serija Style – Tehnički podaci – kratki opis (eng.,pdf)

Izvedbe proizvoda

Izvedbe proizvoda (šifre za naručivanje):

5 LED boja je za neke modele raspoloživo. Umjesto (x) u šifri upišite: Crveno (1), zeleno (2), žuto (3), plavo (4), bijelo (5). Primjer : Style II 5 AFNOR zeleni LED 946152
Opis Bodet šifra
STYLE II 5 Hour, Minute – 5 cm digits
Independent, 110 – 230 VAC 94611x
24V // Impulses, 110 – 230VAC 94612x
DCF, 230VAC 94613x
DHF Wireless, 110 – 230VAC 94614x
Afnor, 110 – 230VAC 94615x
NTP – PoE 94617x
Blue or White LED Extra cost
STYLE II 5S Hour, Minute, Second – 5 cm digits
Independent, 110 – 230 VAC 94621x
24V // Impulses, 110 – 230VAC 94622x
DCF, 230VAC 94623x
DHF Wireless, 110 – 230VAC 94624x
Afnor, 110 – 230VAC 94625x
NTP – PoE 94627x
Blue or White LED Extra cost
Timer keypad HH-MM 936400
Timer Keypad MM-SS 936403
STYLE II 7 Hour, Minute – 7cm digits
Independent, 110 – 230 VAC 94641x
24V // Impulses, 110 – 230VAC 94642x
DCF, 230VAC 94643x
DHF Wireless, 110 – 230VAC 94644x
Afnor, 110 – 230VAC 94645x
NTP – PoE 94647x
Blue or White LED Extra cost
STYLE II 7 ELLIPSE Hour, Minute, Seconds on luminous ellipse – 7cm digits
Independent, 110 – 230 VAC 94651x
24V // Impulses, 110 – 230VAC 94652x
DCF, 230VAC 94653x
DHF Wireless, 110 – 230VAC 94654x
Afnor, 110 – 230VAC 94655x
NTP – PoE 94657x
Blue or White LED Extra cost
STYLE II 7 DATE Hour, Minute, Seconds, Date – 7cm digits
Independent, 110 – 230 VAC 94661x
24V // Impulses, 110 – 230VAC 94662x
DCF, 230VAC 94663x
DHF Wireless, 110 – 230VAC 94664x
Afnor, 110 – 230VAC 94665x
NTP – PoE 94667x
Blue or White LED Extra cost
STYLE II 10 Hour, Minute – 10cm digits
Independent, 110 – 230 VAC 94671x
24V // Impulses, 110 – 230VAC 94672x
DCF, 230VAC 94673x
DHF Wireless, 110 – 230VAC 94674x
Afnor, 110 – 230VAC 94675x
NTP – PoE 94677x
Blue or White LED Extra cost
STYLE II 10 S Hour, Minute, Seconds – 10cm digits
Independent, 110 – 230 VAC 94681x
24V // Impulses, 110 – 230VAC 94682x
DCF, 230VAC 94683x
DHF Wireless, 110 – 230VAC 94684x
Afnor, 110 – 230VAC 94685x
NTP – PoE 94687x
Blue or White LED Extra cost
STYLE II 10 DATE Hour, Minute, Day, Date – 10cm digits
Independent, 110 – 230 VAC 94691x
24V // Impulses, 110 – 230VAC 94692x
DCF, 230VAC 9469Dx
DHF Wireless, 110 – 230VAC 94694x
Afnor, 110 – 230VAC 94695x
NTP – PoE 94697x
Blue or White LED Extra cost
STYLE II 10 SD Hour, Minute, Second, Day, Date – 10cm digits
Independent, 110 – 230 VAC 946A1x
24V // Impulses, 110 – 230VAC 946A2x
DCF, 230VAC 946ADx
DHF Wireless, 110 – 230VAC 946A4x
Afnor, 110 – 230VAC 946A5x
NTP – PoE 946A7x
Blue or White LED Extra cost
STYLE II 5 Recess Mounting Hour, Minute – 5 cm digits
Independent, 110 – 230 VAC 946111F
24V // Impulses, 110 – 230VAC 946121F
DHF Wireless, 110 – 230VAC 946141F
Afnor, 110 – 230VAC 946151F
NTP – PoE 946171F
Back cover for recess mounting 946011
STYLE II 5S Recess Mounting Hour, Minute, Second – 5 cm digits
Independent, 110 – 230 VAC 946211F
24V // Impulses, 110 – 230VAC 946221F
DHF Wireless, 110 – 230VAC 946241F
Afnor, 110 – 230VAC 946251F
NTP – PoE 946271F
Back cover for recess mounting 946012
STYLE II 7 Recess Mounting Hour, Minute – 7cm digits
Independent, 110 – 230 VAC 946411F
24V // Impulses, 110 – 230VAC 946421F
DHF Wireless, 110 – 230VAC 946441F
Afnor, 110 – 230VAC 946451F
NTP – PoE 946471F
Back cover for recess mounting 946014
STYLE II 7 DATE Recess Mounting Hour, Minute, Seconds, Date – 7cm digits
Independent, 110 – 230 VAC 946611F
24V // Impulses, 110 – 230VAC 946621F
DHF Wireless, 110 – 230VAC 946641F
Afnor, 110 – 230VAC 946651F
NTP – PoE 946671F
Back cover for recess mounting 946016
STYLE II 10 Recess Mounting Hour, Minute – 10cm digits
Independent, 110 – 230 VAC 946711F
24V // Impulses, 110 – 230VAC 946721F
DHF Wireless, 110 – 230VAC 946741F
Afnor, 110 – 230VAC 946751F
NTP – PoE 946771F
Back cover for recess mounting 946017
STYLE II 7 IP55 Hour, Minute – 7 cm digits
Independent, 110 – 230 VAC 946411A
24V // Impulses, 110 – 230 VAC 946421A
DHF wireless 110-230 VAC 946441A
Afnor, 110 – 230 VAC 946451A
NTP – PoE 946471A
STYLE II 7D IP55 Hour, Minute, Day, Date – 7 cm digits
Independent, 110 – 230 VAC 946611A
24V // Impulses, 110 – 230 VAC 946621A
DHF wireless 110-230 VAC 946641A
Afnor, 110 – 230 VAC 946651A
NTP – PoE 946671A
STYLE II 10 IP55 Hour, Minute – 10cm digits
Independent, 110 – 230 VAC 946711A
24V // Impulses, 110 – 230 VAC 946721A
DHF wireless 110-230 VAC 946741A
Afnor, 110 – 230 VAC 946751A
NTP – PoE 946771A
ACCESSORIES Double sided bracket STYLE II 5 / 5S (double-sided cable included) 946001
Single sided bracket  STYLE II 5 / 5S 946002
Double sided bracket STYLE II  7 (double-sided cable included) 946001
Single sided bracket STYLE II 7 946002
Double sided bracket STYLE II 7E / 7D (double-sided cable included) 946003
Single sided bracket STYLE II 7E / 7D 946004
Double sided bracket STYLE II 10/10S* (Double-sided cable included) 946005
Single sided bracket STYLE II 10/10S* 946006
Double sided bracket STYLE II 10D/10SD (doublesided cable included) 946007
Single sided bracket STYLE II 10D/10SD 946008
Timer Keypad HH MM 936400
Timer Keypad MM SS 936403
DCF Antenna 907026
* Add 1 DCF antenna ref 907026 for each Style II 10/10S DCF with bracket

Bodet jamstvo

Jamstvo u mjesecima (od datuma isporuke): 24
